Quantum Counting

So the question is how quickly can we determine the number of solutions, $M$ , to an $N$ item search problem, if $M$ is not known in advance? Compare with classical computer, which requires $\Theta(N)$ consultations with an oracle to determin $M$ , a quantum computer is able to estimate number of solutions much more quickly by combining Fourier transform.

Here are some key applications:

If we can estimate the number of solutions quickly then it is also possible to find a solution quickly, even if the number of solutions is unknown. BY first counting the number of solutions, and then applying the quantum saerch algorithm to find a solution.
To decide whether the solution even exist, depending on whether the numbert of solutions is zero, or non-zero. This is useful when we are facing NP-complete problems.

The quantum counting technique only tells how many values $x$ satisfy $f(x)=1$ , not what the solutions are.

To actually find a solution, you run Grovers' search, which gives one solution with high probability.

Phase estimation

Quantum counting is an application of the phase estimation procedure to estimate the eigenvalues of the Grover iteration $G$ . Suppose $|a\rangle$ and $|b\rangle$ are two eigenvectors of the Grover iteration in the space spanned by $|a\rangle$ and $|\beta\rangle$ . Let $\theta$ be the angle of rotation determined by the Grover iteration. From equation,

$G = \begin{bmatrix} \text{cos}\theta & -\text{sin}\theta \\ \text{sin}\theta & \text{cos}\theta \end{bmatrix}$

where $\theta$ is a real number in the range $0$ to $\pi/2$ (assuming for simplicity that $M\leq N/2$ ), where

$\text{sin}\theta = \frac{2\sqrt{M(N-M)}}{N},$

we see that the corresponding eigenvalues are $e^{i\theta}$ and $e^{i(2\pi - \theta)}$ . We expoand our search space to $2N$ to ensure that $\text{sin}^{2}(\theta/2) = M/2N$ .

See below circuit,

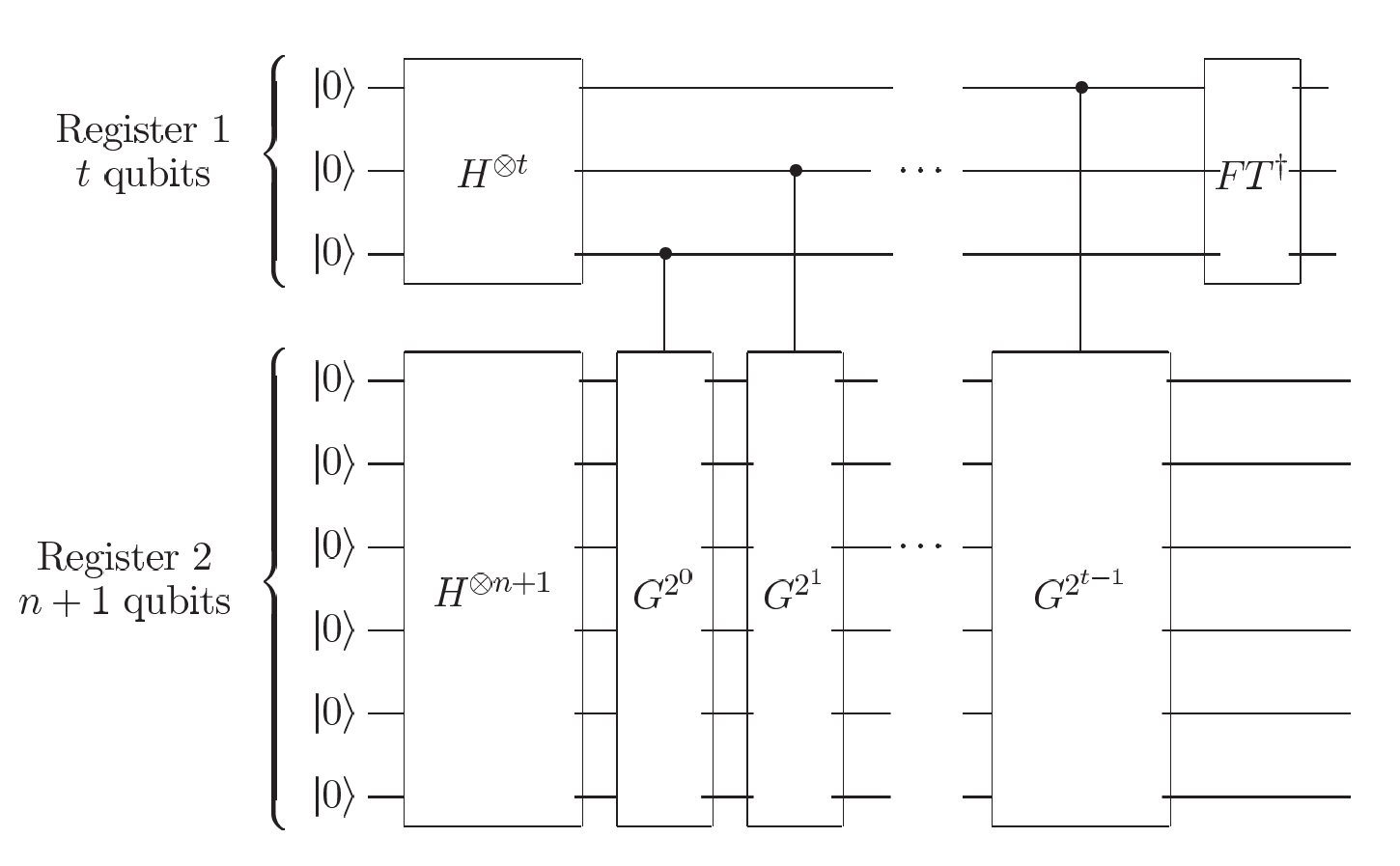

Circuit for performing approximate quantum counting on a quantum computer

Goal: To estimate $\theta$ to $m$ bits of accuracy, with probability of success at least $1-\epsilon$
Component:
1. The first register: $t \equiv m + \lceil \text{log}(2+\frac{1}{2\epsilon}) \rceil$ qubits, as per the phase estimation algorithm.
2. The second register: The second register is initialized to an equal superposition of all possible inputs $\sum_{x}|x\rangle$ by a H gate.

Since the state is a superposition of the eigenstates $|a\rangle$ and $|b\rangle$ , so (by the results of sec 5.2) the circuit below gives us an estimate of $\theta$ or $2 \pi - \theta$ accurate to within $|\Delta \theta|\leq 2^{-m}$ , with probability at least $1-\epsilon$ .

An estimate for $2\pi - \theta$ is claerly equivalent to an estimate of $\theta$ with the same level of accuracy, so effectively the phase estiamtion algorithm determines $\theta$ to an accuracy $2^{-m}$ with probability $1-\epsilon$ .

Using the equation $\text{sin}^{2} = M/2N$ and our estimate for $\theta$ we obtain an estimate of the number of solitions, $M$ . The error of M is

$\begin{array}{ll} \frac{|\Delta M|}{2N} & = |\text{sin}^{2}\bigg(\frac{\theta + \Delta \theta}{2} \bigg) - \text{sin}^{2}\bigg( \frac{\theta}{2} \bigg)| \\ & = \bigg(\text{sin}\bigg( \frac{\theta + \Delta \theta}{2}\bigg) + \text{sin}\bigg( \frac{\theta}{2} \bigg) \bigg)|\text{sin}\bigg(\frac{\theta + \Delta \theta}{2} \bigg) - \text{sin}\bigg( \frac{\theta}{2} \bigg)| \end{array}$

From calculus $|\text{sin}(\frac{\theta + \Delta \theta}{2}) - \text{sin}(\frac{\theta}{2})| \leq \frac{|\Delta \theta|}{2}$ and trigonometry $|\text{sin}(\frac{\theta + \Delta \theta}{2})| < \text{sin}(\frac{\theta}{2}) + \frac{|\Delta \theta|}{2}$ ,

$\frac{|\Delta M|}{2N} < \bigg( 2 \text{sin}\bigg(\frac{\theta}{2} \bigg) + \frac{|\Delta \theta|}{2} \bigg) \frac{|\Delta \theta|}{2}.$

Substituting $\text{sin}^{2}(\frac{\theta}{2}) = M/2N$ and $|\Delta \theta| \leq 2^{-m}$ gives our final estimate for the error in our estimate of $M$ ,

$|\Delta M| < \bigg(\sqrt{2MN} + \frac{N}{2^{m+1}}\bigg) 2^{-m}.$

Example

If we have $N = 1024$ , $M = 16$ , and $m = \rceil n/2 \lceil +1 = 6$ , so $2^{-6} = 1/64$ . We can calcualte $|\Delta M|$ as

$|\Delta M| < \bigg(\sqrt{2MN} + \frac{N}{2^{m+1}}\bigg) 2^{-m} \approx 189.02 \cdot \frac{1}{64} \approx 2.95$

Estimated error in $M$ is $< 2.95$ , so your quantum counting outputs somesthing close to $16$ (likr $15.2$ ), it's within the expected bound.

Note

$O(\sqrt{N})$ refers to Grover search.
- This call seach over a space of size $N$ with one unknown marked item
- It takes about $R = \frac{\pi}{4}\sqrt{N}$ iterations (oracle calls)
- Assume $M = 1$ when no knowledge of how many solutions
$O(\sqrt{M})$
- Refers to the accuracy of quantum counting
- You're trying to estimate $M$ (number of marked items)
- After running phase estimation and computing $\widehat{M}$ , the estimate has an error of

  $|\Delta M| = O(\sqrt{M})$

  where $m \approx 0.5\ \text{log }N$ .

I don't know how many M adhead of time

To perfoem Grover's algorithm, we need to know the number of solutions $M$ to choose the right number of iterations $R$ . But in many cases, you don't know $M$ ahead of time.

To address issue, we can first use quantum counting algorithm to first estimate $\theta$ and $M$ to high accuracy using phase estimation, and then to apply the quantum search algorithm, repeating the Grover iteration a number of times determined by

$R = CI\bigg(\frac{\text{cos}^{-1}\sqrt{M/N}}{\theta} \bigg)$

with the estimates for $\theta$ and $M$ obtained by phase estimation substituted to determine $R$ . Although your estimated $\theta$ can be a little off, with $m = \lceil n/2 \rceil +1$ , the angular error stays within $3\pi/8$ . This gives a success probability of at least $\text{cos}^{2}(\frac{3\pi}{8}) \approx 0.15$ . even if phse estimation only succeeds $5/6$ of the time, the total success is

$\frac{5}{6} \cdot 0.15 \approx 0.12$

which is still usable. We can repeat a few times to boost the probability.

References

[1]. M. A. Nielsen and I. L. Chuang, Quantum Computation and Quantum Information, 10th Anniversary Ed., Cambridge: Cambridge University Press, 2010.
