Quantum Amplitude Estimiation Introduction

Suppose a unitary operator $\mathcal{A}$ acts on a register of $(n+1)$ qubits such that

$\mathcal{A}|0 \rangle_{n+1} = \sqrt{1-a} |\psi_{0} \rangle_{n} |0\rangle + \sqrt{a}|\psi_{1}\rangle_{n}|1\rangle,$

for some normalized states $|\psi_{0}\rangle_{n}$ and $|\psi_{1}\rangle_{n}$ , where $a \in [0,1]$ is unknown.

Amplitude estimation allows us to efficiently estimate the value of $a$ , i.e., the probability of measuring $|1\rangle$ in the last qubit. [2] This is done using an operator $Q$ and Quantum Phase Estimation (QPE) [3], which helps approximate certain eigenvalues of $Q$ .

1. We need some qubits!

Quantum Phase Estimation requires $m$ additional qubits and $M = 2^{m}$ applications of the operator $Q$ . These $m$ qubits are first put into an equal superposition using Hadamard gates. Then, this superposition is used to control different powers of $Q$ —each counting qubit controls a different $Q^{2^j}$ .

2. Let’s do the inverse Fourier transform

After applying the inverse Quantum Fourier Transform (QFT) to the $m$ counting qubits, we measure them. This gives an integer outcome $y \in \{0,\dots,M-1\}$ , which we map classically to an estimate $\widetilde{a}$ .

The estimator $\widetilde{a}$ satisfies:

$\begin{array}{ll} |a - \widetilde{a}| &\leq \frac{2\sqrt{a(1-a)\pi}}{M} + \frac{\pi^{2}}{M^{2}} \\ &\leq \frac{\pi}{M} + \frac{\pi^{2}}{M^{2}} = O(M^{-1}), \end{array}$

with probability at least $\frac{8}{\pi^2} \approx 0.811$ . Below figure is the quantum circuit for constructing a Qauntum Amplitude Estimation.

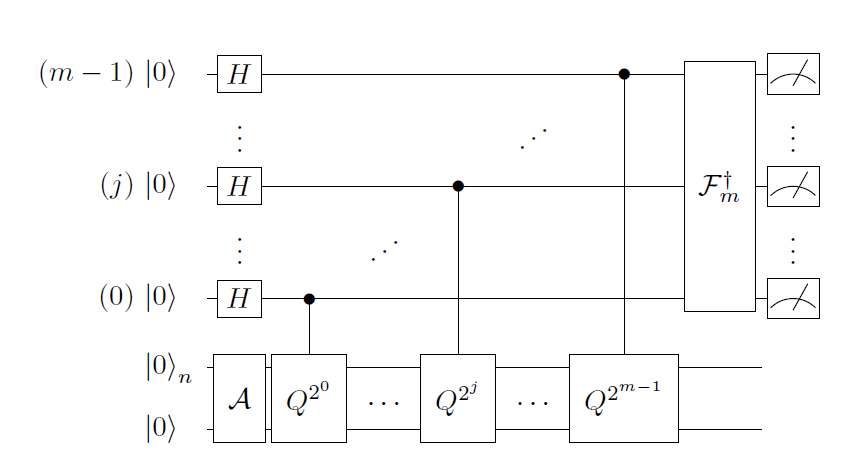

Quantum circuit for amplitude estimation. $H$ and is the Hadamard gate and $F^{\dagger}_{m}$ denotes the inverse Quantum Fourier Transform on m qubits.

How to read this quantum circuit?

There are three sections in this quantum circuit:

Top $m$ qubits:
These are the counting qubits (labeled from 0 to $j$ to $m{-}1$ in the figure). They are used in the Quantum Counting Algorithm and Grover's Algorithm. Each qubit starts in the state $|0\rangle$ and is passed through a Hadamard gate. After the Hadamard transformation, the $m$ qubits form an equal superposition:

$\frac{1}{\sqrt{2^{m}}} \sum_{k=0}^{2^{m}-1} |k\rangle.$

For example, if $m = 2$ , we have an equal superposition state $|\psi\rangle$ of:

$|\psi\rangle = \frac{1}{2}(|0\rangle+|1\rangle+|2\rangle+|3\rangle).$
Middle $n$ qubits:
This register is initialized as $|0\rangle^{\otimes n}$ (denoted as $|0\rangle_n$ in the figure). It is used to encode computational basis states $|i\rangle$ drawn from a probability distribution $p_i$ .
Bottom 1 qubit (ancilla):
This single ancilla qubit encodes the value of the function $f(i) \in [0, 1]$ via a controlled rotation.

What is operator

$A$ ?

Operator $A$ acts on the bottom $n+1$ wires:

$A|0\rangle^{\otimes (n+1)} \mapsto \sum_{i} \sqrt{p_i}\, |i\rangle_{n} \left( \sqrt{1 - f(i)}\,|0\rangle + \sqrt{f(i)}\,|1\rangle \right)$

This operation prepares the quantum probability distribution and encodes the function $f(i)$ into the amplitude of the ancilla qubit. $A$ simultaneously acts on the $n$ qubits representing the computational basis state $|i\rangle$ and the single ancilla qubit used to encode $f(i)$ .

What is operator

$Q$ ?

Operator $Q$ is the Grover diffusion operator, used in amplitude amplification. Each $m$ qubit controls a different power of $Q$ , which acts on the bottom $n+1$ register. Specifically:

$Q^{2^0}$ is controlled by counting qubit 0
$Q^{2^j}$ is controlled by counting qubit $j$
$Q^{2^{m-1}}$ is controlled by the last counting qubit $m{-}1$

These controlled powers of $Q$ are part of the standard phase estimation procedure.

Inverse QFT

$F^{\dagger}_{m}$ ?

The inverse quantum Fourier transform, denoted $F^{\dagger}_{m}$ , is applied to the top $m$ qubits. It is used to decode the phase information acquired during the controlled- $Q$ operations. The eigenphase encodes the amplitude:

$a = \mathbb{E}[f(X)]$

which is the expected value of the function $f(i)$ under the distribution $p_i$ . This step extracts the amplitude estimate after phase accumulation.

3. Finding Expected Value, the Quantum Way

In this section, we demonstrate how to use amplitude estimation to approximate the expected value of a discrete random variable encoded in a quantum state.

Suppose we have the quantum state

$|\psi\rangle_{n} = \sum_{i = 0}^{N-1} \sqrt{p_{i}}\,|i\rangle_{n},$

where the probability of measuring the basis state $|i\rangle_{n}$ is $p_{i} \in [0,1]$ , with $\sum_{i=0}^{N-1} p_{i} = 1$ and $N = 2^{n}$ . The state $|i\rangle_{n}$ represents one of $N$ possible outcomes of a bounded discrete random variable $X$ .

For example, $|i\rangle$ might represent a discretized interest rate or the value of a portfolio. If $n = 2$ , then $i \in \{0, 1, 2, 3\}$ , which could correspond to an interest rate of 0%, 1%, 2%, or 3%, respectively.

4. Apply a Function to Extract Useful Info

Let’s say we have a function $f: \{0, \dots, N{-}1\} \rightarrow [0, 1]$ and define an operator:

$F: |i\rangle_{n} |0\rangle \mapsto |i\rangle_{n} \left( \sqrt{1 - f(i)}\,|0\rangle + \sqrt{f(i)}\,|1\rangle \right),$

which applies a controlled rotation on an ancilla qubit based on the value of $f(i)$ .

Now apply this operator ( $F$ ) to the quantum state $|\psi\rangle_{n} |0\rangle$ ( $|\psi\rangle_{n} = \sum_{i = 0}^{N-1} \sqrt{p_{i}}\,|i\rangle_{n}$ ), and we get:

$\sum_{i=0}^{N-1} \sqrt{p_i}\,|i\rangle_{n} \left( \sqrt{1 - f(i)}\,|0\rangle + \sqrt{f(i)}\,|1\rangle \right).$

At this point, the probability of measuring $|1\rangle$ in the last qubit is:

$\sum_{i=0}^{N-1} p_i f(i) = \mathbb{E}[f(X)],$

which is exactly what we want to estimate. To do this, we simply square the amplitude of the last qubit $|1\rangle$ .

Now for a few useful choices of $f(i)$ :

If you use $f(i) = i / (N - 1)$ , you’re estimating the normalized mean $\mathbb{E}[X / (N - 1)]$ , and from that, you can recover $\mathbb{E}[X]$ .
If you use $f(i) = i^2 / (N - 1)^2$ , you can estimate $\mathbb{E}[X^2]$ and then compute the variance:

$$ \text{Var}(X) = \mathbb{E}[X^2] - \left(\mathbb{E}[X]\right)^2 $$

5. How to evaluate risk measures such as VaR and CVaR

VaR

For a given confidence level $\alpha \in [0,1]$ . $\text{VaR}_{\alpha}(X)$ (X is a random variable, can be loss or value) can be defined as the smallest value $x \in \{0,\cdots,N-1\}$ such that $\mathbb{P}[X \leq x]\geq (1-\alpha)$ , which simply implies that with $1-\alpha$ probability, losses will not exceed $x$ . To find $\text{VaR}_{\alpha}(X)$ on a quantum computer, we define the function

$f_l(i) = \begin{cases} 1 & \text{if } i \leq l \\ 0 & \text{otherwise} \end{cases}$

where $l \in \{0,\cdots,N-1\}$ . Applying $F_l$ , i.e. the operator corresponding to $f_l$ . to $|\psi\rangle_{n}|0\rangle$ leads to the state $$ \sum_{i = l+1}^{N-1}\sqrt{p_i}|i\rangle_{n}|0\rangle+ \sum_{i = 0}^{l}\sqrt{p_i}|i\rangle_{n}|1\rangle. $$ The probability of measuring $|1\rangle$ for the last qubit is $$ \sum_{i=0}^{l}p_{i} = \mathbb{P}[X \leq l]. $$ Then use the binary search on $l \in \{0,\cdots,N-1 \}$ in at most $n$ steps to find the smallest $l_{\alpha}$ such that: $$ \mathbb{P}[X \leq l_{\alpha}] \geq 1 - \alpha $$ This gives you the $\text{VaR}_{\alpha}(X)$ . This allows us to estimate $\text{VaR}_{\alpha}(X)$ as before with accuracy $O(M^{-1})$ .

CVaR

$\text{CVaR}_{\alpha}(X)$ is the conditional expectation of $X$ restricted to $\{0,\cdots,l_{\alpha}\}$ , where we compute $l_{\alpha} = \text{VaR}_{\alpha}(X)$ as before. To estimate CVaR we apply the operator $F$ that corresponds to the function $$ f(i) = \frac{i}{l_{\alpha}} \cdot f_{l_{\alpha}}(i) $$ to $|\psi\rangle|0\rangle$ , which leads to the state $$ \bigg(\sum_{i = l_{\alpha}+1}^{N-1}\sqrt{p_i}|i\rangle_{n}|0\rangle+ \sum_{i = 0}^{l}\sqrt{1 - \frac{i}{l_{\alpha}}}\sqrt{p_i}|i\rangle_{n}|1\rangle\bigg)|0\rangle + \sum_{i=0}^{l_{\alpha}}\sqrt{\frac{i}{l_{\alpha}}}\sqrt{p_i}|i\rangle_{n}|1\rangle. $$ The probability of measuring $|1\rangle$ for the last qubit equals $$ \sum_{i=0}^{l_{\alpha}}\frac{i}{l_{\alpha}}p_{i}, $$ which we approcimate using amplitude estimation. However, we know that $\sum_{i=0}^{l_{\alpha}}p_{i} \neq 1$ but $\mathbb{P}[X\leq l_{\alpha}]$ as evaluated during the VaR estimation. Therefore, we mst normalize the probability of measuring $|1\rangle$ to get $$ \text{CVaR}{\alpha}(X) = \frac{l. $$ We also multiplied by }}{\mathbb{P}[X \leq l_{\alpha}]}\sum_{i=0}^{l_{\alpha}}\frac{i}{l_{\alpha}}p_{i $l_{\alpha}$ , otherwise we would estimate $\text{CVaR}_{\alpha}(\frac{X}{l_{\alpha}})$ . Even though we replace $\mathbb{P}[X \leq l_{\alpha}]$ by an estimation, the error on CVaR, shows that we still achieve a quadratic speed up compated to classical Monte Carlo methods.

Construction of Quantum Circuit

Approximating $\mathbb{E}$ using amplitude estiamtion requires the operator $F$ for $f(x) = x/(N-1)$ . In general, representing $F$ for the expected value or for the CVaR either additional ancillas to pre-compute the (discretized) function $f$ into qubits, using quantum arithmetic, before applying the rotation (ref)/ And the exact number of ancillas depends on the desired accuracy of the approximation of $F$ .

In the following, paper [1] will show how to approximate $F$ without ancillas using polynomially many gates, at the cost of a lower - but still faster than classical - rate of convergence. Note that the operator required for estimating VaR is easier to construct and we can always achieve the optimal rate of convergence as discussed later.

Polynomial Approximate Quantum Circuit without Ancillas

The contribution in paper paper [1]. rests on the fact that an operator $$ P: |x\rangle_{n}|0\rangle \mapsto |x\rangle_{n}(\text{cos}(p(x))|0\rangle + \text{sin}(p(x))|1\rangle) $$ for a given polynomial $p(x) = \sum_{j=0}^{k}p_{j}x^{j}$ of order $k$ , can be efficiently constructed using multi-controlled Y-rotations.

(image) *Here, we use qiskit for illustration, since Qiskit doesn't have native Ry-controlled gate with 2+ controlls, we use $\text{MCX}(q_{0},q_{1}) \mapsto R_y(4a) \mapsto \text{MCX}(q_{0},q_{1})$ . See Qiskit Quantum library, for more infomation.

In the single qubit operations with $n-1$ control qubits, it can be exactly constructed using $O(n)$ gates and $O(n)$ ancillas or $O(n^{2})$ gates without ancilla. Here, peper [1] uses $O(n)$ gates and $O(n)$ ancillas. Since the binary variable representation of $p$ , leads to at most $n^{k}$ terms, the operator $P$ can be constructed using $O(n^{k+1})$ gates and $O(n)$ ancillas.

For every analytic function $f$ , there exists a sequence of polynomials such that the approximation error converges exponentially fast to zero with increasing order of the polynomials [4].

If we can find a polynomial $p(y)$ such that $\text{sin}^{2}(p(y)) = y$ , then we can set $y=f(x)$ , and the previous discussion provides a way to construct the operator $F$ . Since the expected value is linear, we may choose to estimate $\mathbb{E}[c(f(X) - \frac{1}{2}) + \frac{1}{2}]$ instead of $\mathbb{E}[f(X)]$ for a parameter $c\in(0,1]$ , and then map the result back to an estimatior for $\mathbb{E}[f(X)]$ . The rationale behind this choice is that $\text{sin}^{2}(y+\frac{\pi}{4}) = y+\frac{1}{2} + O(y^3)$ .

What is

$\mathbb{E}[c(f(X) - \frac{1}{2}) + \frac{1}{2}]$ and Why?

By the linearity of expected value, we may define a function $g(X)$ such that $$ g(X) := c(f(X) - \frac{1}{2}) + \frac{1}{2} \Rightarrow \mathbb{E}[g(X)] = c\mathbb{E}[f(X)] + (\frac{1}{2}+\frac{c}{2}) $$ therefore, you can estiamte $\mathbb{E}[g(X)]$ (via amplitude estimation), you can solve for $$ \mathbb{E}[f(X)] = \frac{1}{c}(\mathbb{E}[g(X)]-\frac{1}{2})+\frac{1}{2}. $$ Paper [1] wants to approximate $$ \text{sin}^{2}\bigg(cp(y) + \frac{\pi}{4} \bigg) \approx \bigg( y - \frac{1}{2}\bigg) + \frac{1}{2} $$

The $\text{sin}^{2}$ term is how amplitude is encoded in a quantum circuit.
We can map term $\bigg( y - \frac{1}{2}\bigg) + \frac{1}{2}$ without ancilla on a quantum circuit.

Why this weird-looking expression?

Paper [1] wants to approximate $$ \text{sin}^{2}\bigg(cp(y) + \frac{\pi}{4} \bigg) \approx \bigg( y - \frac{1}{2}\bigg) + \frac{1}{2} $$ And the reason is that 1. Function $\text{sin}^{2}(y+\frac{\pi}{4} \approx y + \frac{1}{2})$ when $y$ is small (Taylor expression). By doing this,

Why do we use

$c(f(x) - \tfrac{1}{2}) + \tfrac{1}{2}$ and how does it relate to amplitude estimation?

Quantum amplitude estimation (QAE) measures probabilities of the form: $$ a = \sin^2(\theta) \quad \Rightarrow \quad \theta = \sin^{-1}(\sqrt{a}) $$ To encode a desired probability $a \in [0,1]$ , we prepare the state: $$ R_y(2\theta)|0\rangle = \cos(\theta)|0\rangle + \sin(\theta)|1\rangle $$ which yields: $$ P(|1\rangle) = \sin^2(\theta) = a (\text{Born rule}) $$ So to encode a function $f(x)$ as a measurable amplitude, we must construct a function $p(x)$ such that: $$ \sin^2(p(x)) = f(x) \quad \Rightarrow \quad p(x) = \sin^{-1}(\sqrt{f(x)}) $$ But since arbitrary functions are hard to implement on quantum circuits, we use a polynomial approximation of this $p(x)$ . Instead of encoding $f(x)$ directly, we approximate a more convenient form: $$ c(f(x) - \tfrac{1}{2}) + \tfrac{1}{2} $$ Why this form? Because of the Taylor expansion: $$ \sin^2(y + \tfrac{\pi}{4}) = \tfrac{1}{2} + y - \tfrac{4y^3}{6} + \cdots \Rightarrow \boxed{\sin^2(y + \tfrac{\pi}{4}) \approx \tfrac{1}{2} + y} \text{ for small } y $$ This motivates encoding: $$ \sin^2(cp(f(x)) + \tfrac{\pi}{4}) \approx c(f(x) - \tfrac{1}{2}) + \tfrac{1}{2} $$ - $f(x) - \tfrac{1}{2}$ : centers the value around 0 - $c \in (0,1]$ : scales down for small-angle accuracy - $+ \tfrac{1}{2}$ : shifts result back to $[0,1]$

This form enables accurate encoding of $f(x)$ into amplitude using polynomially approximated quantum rotations.

Thus, we want to find $p(y)$ such that $c(y - \frac{1}{2}) + \frac{1}{2}$ is sufficiently well approximated by $\text{sin}^{2}(cp(y)+\frac{\pi}{4})$ . Thus, we try to solve $p(y)$ for $$ c(y - \frac{1}{2}) + \frac{1}{2} = \text{sin}^{2}(cp(y)+\frac{\pi}{4}) $$ we have $$ p(y) = \frac{1}{c}\bigg(\text{sin}^{-1}\bigg(\sqrt{c\bigg( y - \frac{1}{2}\bigg) + \frac{1}{2}}\bigg)-\frac{\pi}{4}\bigg) $$ and we choose $p(y)$ as Taylor approximation of above equation around $y = 1/2$ . From Taylor approximation, term $y-1/2$ makes a approximation an odd function and thus all sum of even function are zero. This approximation of order $2u+1$ leads to a maximal approximation error for above equation of

$\frac{c^{2u+3}}{(2u+3)2^{u+1}}+O(c^{2u+5}),$

for all $y\in[0,1]$ .

Why are we constructing

$p(x)$ like this?

Amplitude estimation measures the probability: $$ a = \sin^2(\theta) \Rightarrow \theta = \sin^{-1}(\sqrt{a}) $$ To encode a target probability $a \in [0,1]$ , we compute this angle $\theta$ and apply the rotation gate: $$ R_y(2\theta)|0\rangle = \cos(\theta)|0\rangle + \sin(\theta)|1\rangle $$ This creates a quantum state where the amplitude of $|1\rangle$ is $\sin(\theta)$ , so measuring the ancilla gives: $$ P(|1\rangle) = \sin^2(\theta) = a $$ Therefore, to prepare an amplitude that reflects $f(x)$ , we construct $p(x)$ such that: $$ p(x) = 2 \cdot \sin^{-1}(\sqrt{f(x)}) $$ This lets amplitude estimation recover $\mathbb{E}[f(X)]$ through quantum measurement.

Convergence

Reference

Quantum Amplitude Amplification and Estimation. Brassard et al., 2002. https://arxiv.org/abs/quant-ph/0005055
Quantum Amplitude Amplification and Estimation, G. Brassard, P. Hoyer, M. Mosca, and A. Tapp, arXiv:0005055 (2000). https://arxiv.org/abs/quant-ph/0005055
Quantum measurements and the Abelian Stabilizer Problem, A. Y. Kitaev (1995), https://arxiv.org/abs/quant-ph/9511026
L. N. L. N. Trefethen, Approximation theory and approximation practice (2013), ISBN 1611972396.
